Industrial-Grade Submerged Arc Furnace for Efficient Smelting of Ferroalloys with 6300KVA to 68000KVA Capacity
製品の説明
Small Submerged Arc Furnace (SAF) for Ferroalloys
Easy To Operate Arc Melting Furnace for Silicomanganese, Ferrochromium & Ferrosilicon
Submerged Arc Furnace Overview
Our industrial-grade submerged arc furnace is designed for efficient smelting of various ferroalloys including ferrosilicon, silicomanganese, ferrochromium, ferromanganese, ferronickel, and silicon metal.
Furnace Structure Characteristics
This power-intensive industrial furnace system consists of multiple integrated components:
Furnace shell with lining and fume hoods
Short net electrical system
Comprehensive cooling and exhaust systems
Electrode management system (shell, holder, lifting mechanism)
Loading/unloading systems
Hydraulic systems
Specialized submerged arc furnace transformer
Three-Layer System Architecture
First Layer Components
Furnace body (support structure, shell, lining)

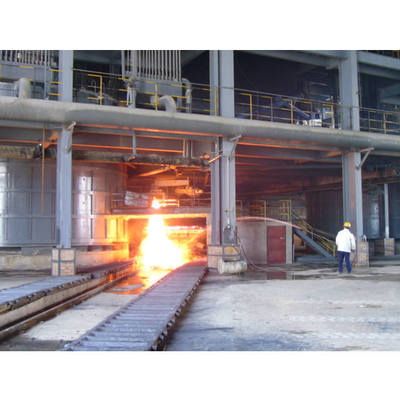

Tapping system with ladle and transport car
Arc burner system
Second Layer Components
Fume hood: Closed/semi-closed environmental design for gas collection and heat retention

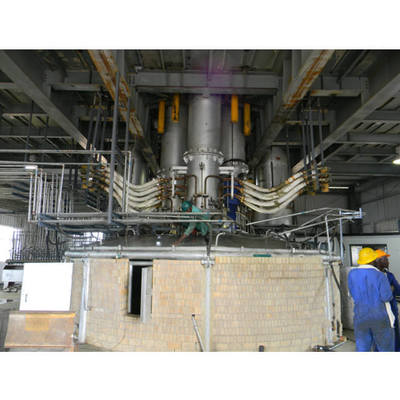

Electrode holder: Three-phase power configuration with self-roasting electrodes

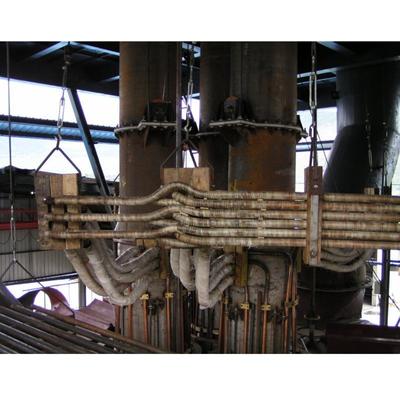

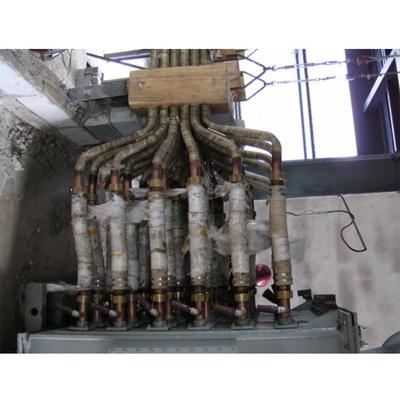

Short net electrical distribution
Copper tile components
Electrode shell structure
Material unloading system
Stoking machine
Exhaust and water-cooling systems
Furnace transformer and operating controls
Third Layer Components
Hydraulic power system
Electrode press/release mechanism
Electrode lifting system
Steel platform structure
Material distribution systems (hopper, cycle car)
Additional Systems
Skew bridge feeding mechanism
Electronic batching control system
Ferroalloy Smelting EPC Services
With experience from over 200 global installations, we provide complete engineering solutions for ferroalloy production:
Available furnace capacities: 6300KVA to 68000KVA
Full-process support from raw material preparation to finished product
Comprehensive services including engineering design, equipment supply, installation, and operational training
